XH-SCT-T20
UL2808 XOBA Split Core (clip on ) Current Sensor XH- SCT-T20

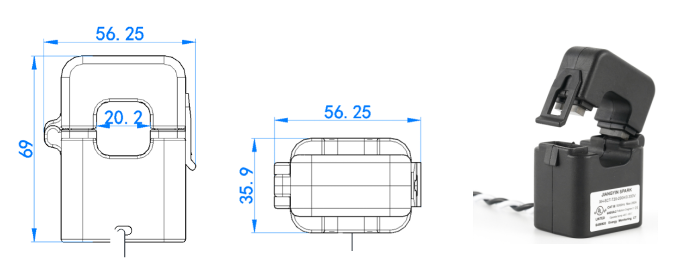

ID 20mm Opening With 1A To 300 Amp Rating
Description:
Jiangyin Spark XH-SCT-T20 energy monitoring split core current transformer, AC current from 1 to 300 Amps passing through the center conductor.Split core Current Transformers are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.Built in resistor provides 0.333V output ,this method permits a safer,easy and portable current measurement.
One-handed opening and closing mechanism makes a snap installation
一、 SPECIFICATIONS ：
1、Input : 1A to 300Aac
2、Output: 0.333V or mA ,mV at rated current
3、Rated Voltage：0.66KV
4、Insulation Voltage：5400V
5、Rated Frequency：50-400Hz
6、Operating Temperature：-40℃to 85℃
7、Flame resistance：UL94-V0
8、Certificates： UL2808 ,CE, RoHS and IEC61010-1
