XH-SCT-1250
1.25" Opening measures from 50 to 600 Amps
Description:
Jiangyin Spark SCT-1250 Series split-core current transformer AC current from 50 to 600 Amps passing through the center conductor. Split core CTs are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement. An internal precision burden resistor across the secondary winding of the CT provides a safe low voltage output and permits safe opening of the secondary
Features:
Rated Current 50A to 600A loads.
Rated output: 0.333Vac at rated current
Accuracy:±1% from 5% to 120% of rated current
Phase Angle: less than 2 degrees at 50% of rated current
Insulation Voltage:600Vac
Maximum Primary Voltage:5000Vac(Insulated Conductor)
Operating Temperature:-15℃to 60℃.
Frequency Range:50-400Hz
Leads:4Foot(105cm),UL 1015,Twisted Pair,0.34 mm2(22AWG)
CE recognized. RoHS Compliant
Output and leads can be customized
Application:
Measures AC current flow to electric motors, lighting, air conditioning equipment, etc.Compatible with HVAC temperature control, power management,building automation systems.
Model | Input（A） | Max currnet（A） | Output |
XH-SCT-1250 | 0-600A | 600 | mA/0.333Vac/0-5Vac |

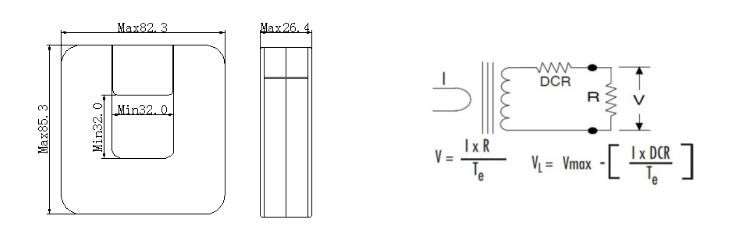

Dimensions(mm)：

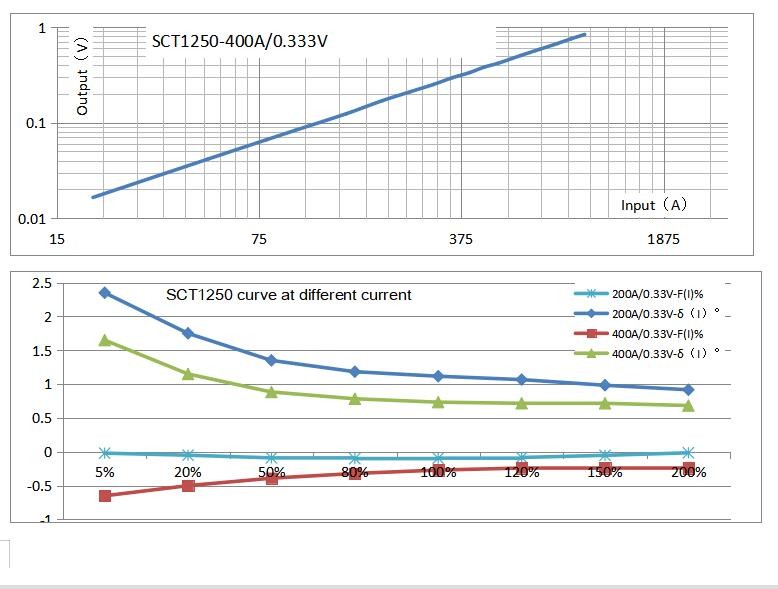

Curve Performance:
1.25" Opening measures from 50 to 600 Amps
Description:
Jiangyin Spark SCT-1250 Series split-core current transformer AC current from 50 to 600 Amps passing through the center conductor. Split core CTs are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement. An internal precision burden resistor across the secondary winding of the CT provides a safe low voltage output and permits safe opening of the secondary
Features:
Rated Current 50A to 600A loads.
Rated output: 0.333Vac at rated current
Accuracy:±1% from 5% to 120% of rated current
Phase Angle: less than 2 degrees at 50% of rated current
Insulation Voltage:600Vac
Maximum Primary Voltage:5000Vac(Insulated Conductor)
Operating Temperature:-15℃to 60℃.
Frequency Range:50-400Hz
Leads:4Foot(105cm),UL 1015,Twisted Pair,0.34 mm2(22AWG)
CE recognized. RoHS Compliant
Output and leads can be customized
Application:
Measures AC current flow to electric motors, lighting, air conditioning equipment, etc.Compatible with HVAC temperature control, power management,building automation systems.
Model | Input（A） | Max currnet（A） | Output |
XH-SCT-1250 | 0-600A | 600 | mA/0.333Vac/0-5Vac |
Dimensions(mm)：
Curve Performance:
