XH-SCT-T16
S3
8504
Split core current transformer with high quality and CE UL certification
Specifications:
Maximum continuous primary current 100A
Secondary turns: 50mA or as per customer datasheet
current transformer output: 50mA
Wire leads: 24# AWG UL2464 24AWG
Frequency: 50/60Hz
Accuracy: 1%
DC resistance: 460ohms @ 20degree Celsius
Applications:
Portable instruments
Sub-metering
Monitor motor load
Model | I.D. | Ratio | Rated Amps | Rated output | Accuracy |
XH-SCT-T16 | 16mm | 2000:1 | 100A | 50mA | 0.5 , 1.0 |
Our main products:
Split Core Current Transformer, Split Core Current Sensor, Split Core Current Transducer, Clip on Current Sensor, Current Transformer Manufacturer, Split Core Cts Manufacturer, Current Sensor Manufacturer, Clamp on Current Transformer, AC Split Core Current Transformer, Flex Core Current Transformer

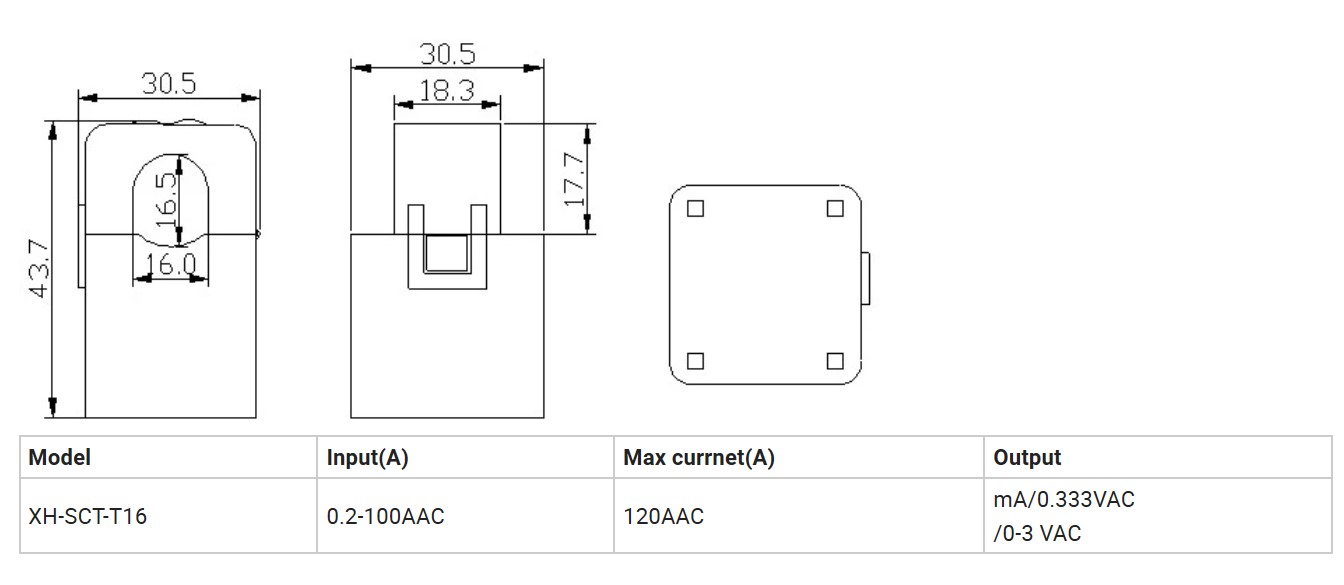

Drawing size
