flexible rogowski coil split current transducer manufacturer

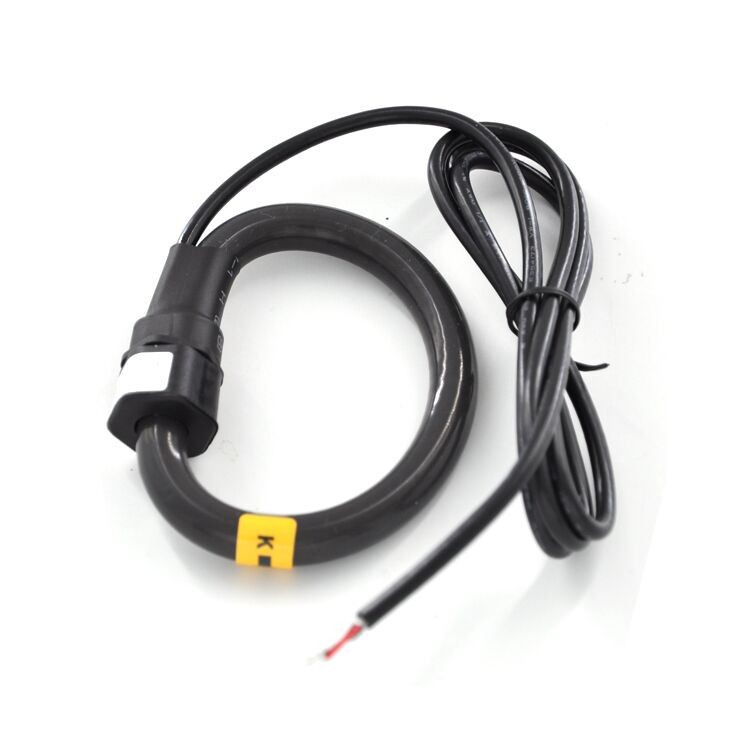

Jiangyin Spark FCT rogowski coil is flexible, like rope ,it is designed to use where solid or split core current transformers cannot fit Advantage including high accuracy, wide measurement and frequency range and very light weight.The probes comprise a flexible air–cored sensor which can be opened, allowing them to be installed around a primary conductor without interrupting the circuit. The flexible and lightweight measuring head allows quick and easy installation in hard to reach areas and with large conductors.
Key specifications
Specifications:
Current Range: 1000A

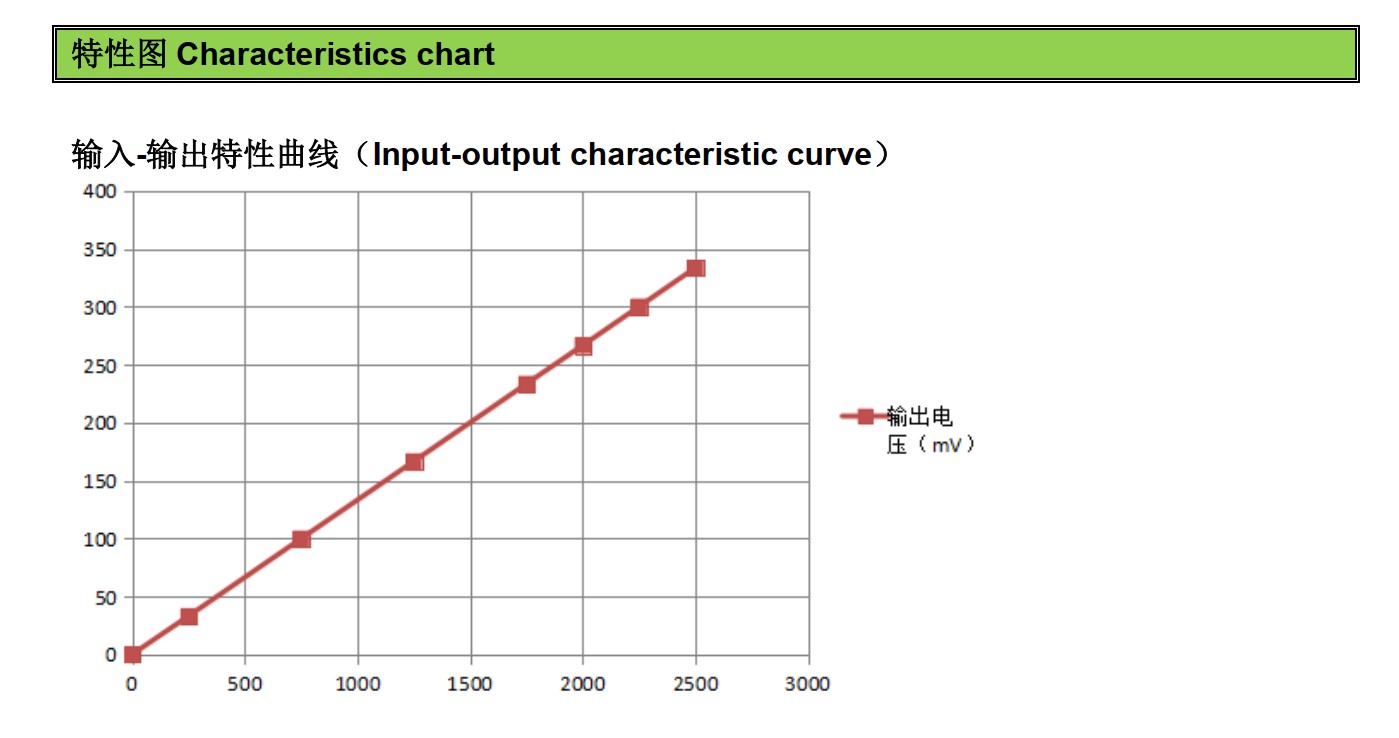

Rated output: 100mvac at rated current with Integrator,100mV per 1000A without integrator@50Hz
Accuracy:±1% from 5% to 120% of rated current with integrator(45-65Hz)
Phase Angle: ≤±1°5% to 120% from 5% to 120% of rated current
Linear: 0.5%
Frequency: 1Hz-1MHz ,50/60 Hz nominal
Work Voltage: 600V
Power supply: 7-30VDC (9 Vdc,12 Vdc recommended )

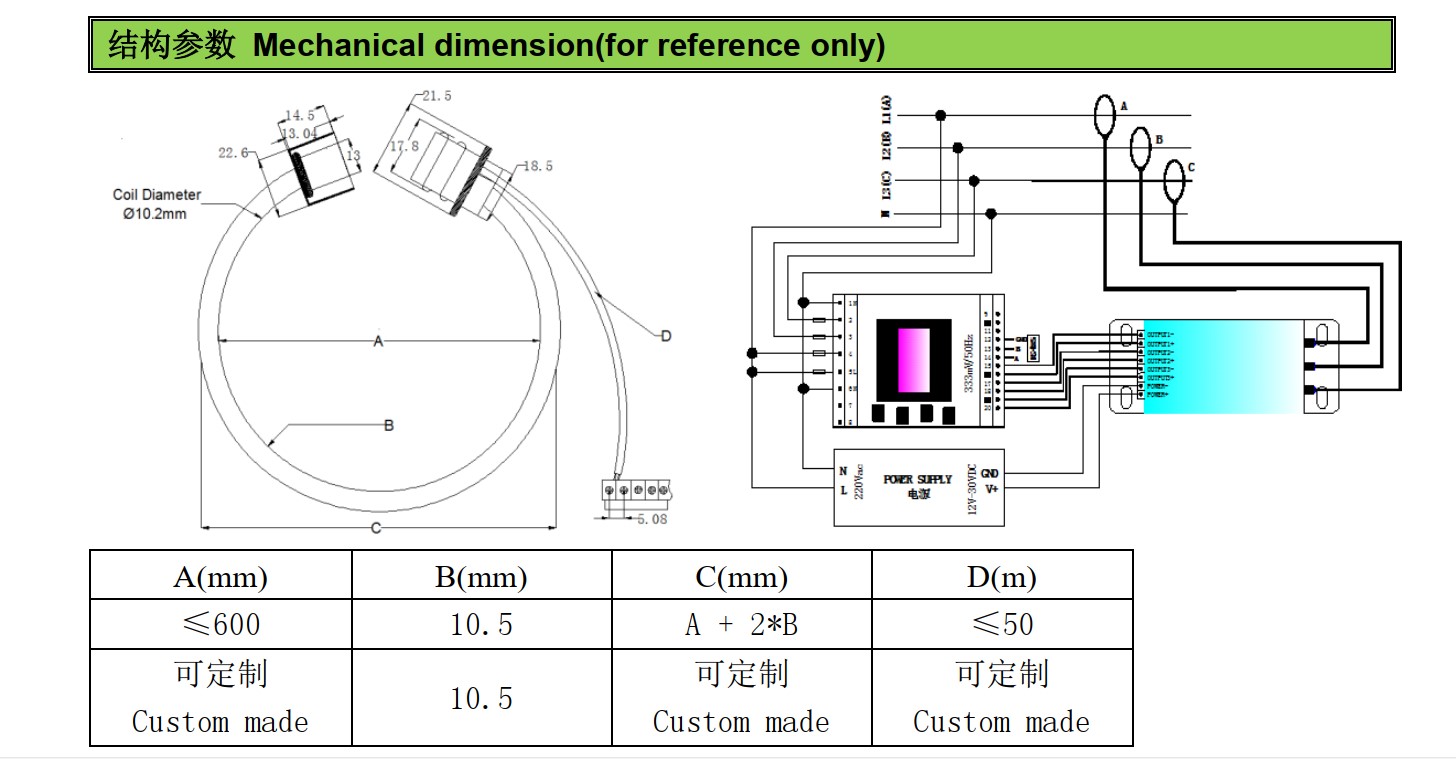

Coil Diameter: 10.5mm,12mm or as customer order
Window size: 10mm,15mm or as per customer ordered
Wire lead: 1 meter sheath cable or as customers order
Withstand Voltage:3000V
Operating temperature: -25℃-+70℃
IP class : IP65
CE recognized. RoHS Compliant
Rated current (rms) | 10A-100KA |
Output | 10000A/1v (without integrator) |
1000A/100mV (without integrator) | |
Coil length | 200mm-2000mm |
Window size | 60mm-630mm |
Tube | UL material |
Wire lead | UL 21233 |
Isolation voltage | 7400V |
Operating temperature | -25℃-+70℃ |
Frequency | 50Hz-60Hz |
Accuracy | ±1% |
ectrical meter single phase electric meter price

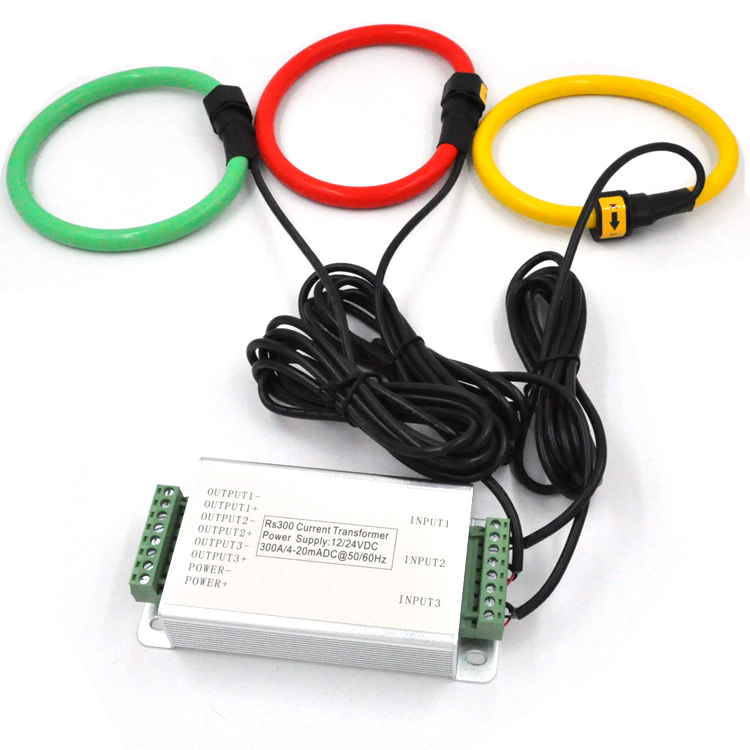

Three phase rogowski coils with 0.33v /5voutput(whatsapp:+86-13806164660)
