XH-SCT-T36
S3
8504
400A/5 sct-t36 36mm Single phase Split Core Current Transformers
Split core current transformer with high quality and CE UL certification
Description :
XH- SCTseries toroidal small transformer split core current transformer usd for AC current measurement,energy metering,submetering applications,which hasSmall size,easy installation,it is safer and portable than other current transformer.
Features
Maximum continuous primary current 400AC
Current Ratio: 80: 1
Output: 5A.
Accuracy: ± 0.5% from 5% to 120% of rated current
Insulation Voltage: 600VAC
Maximum Primary Voltage: 5000VAC(Insulated Conductor)
Phase angle: Less than 2 degrees at 50% of rated current
Frequency Range: 50 Hz to 400 Hz
Operating Temperature: -15C to 60C.
Leads: 4Foot(105cm), UL 1015, Twisted Pair, 0.34 mm2(22AWG)
CE recognized, and RoHS compliant
Output and leads can be customized
Application

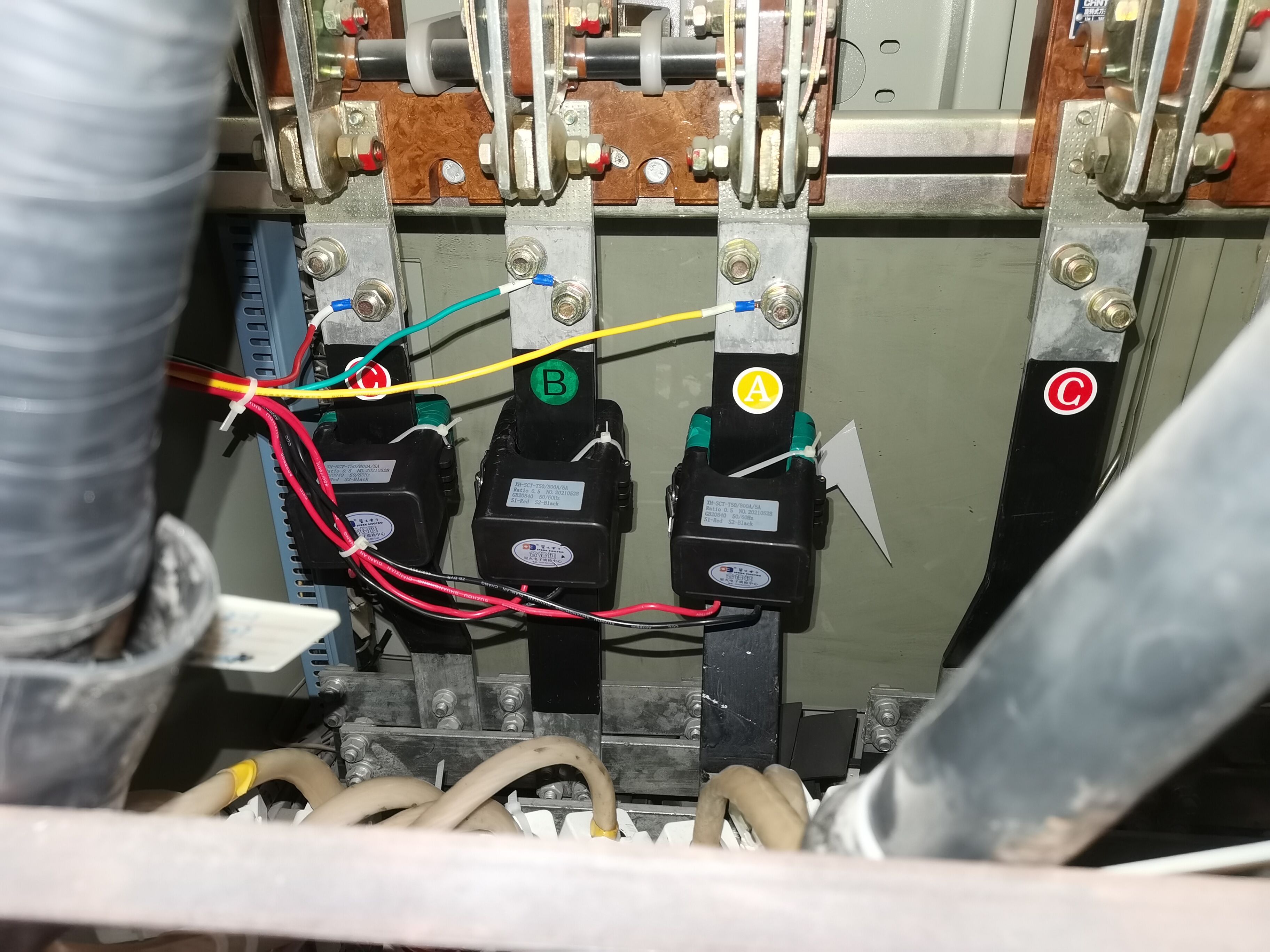

Measures AC current flow to electric motors, lighting, air conditioning equipment, etc.Compatible with HVAC temperature control, power management,building automation systems.
| Model | Input | Output | Windwo size | Wire leas | Accuracy |
| SCT-T36 | 400A | 5A | 36mm | 1m | 0.5% |
Drawing size
Certifications
Contact detail
